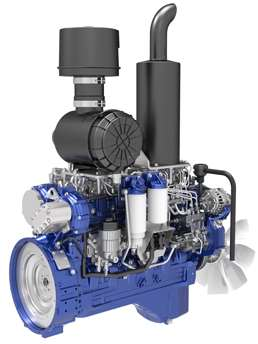

Power |
92KW/2200RPM |
|
Rated loading capacity |
3T |
|
Bucket capacity |
2.2m³ |
|
Maximum dumping height (blade plate) |
2803mm |
|
Operating weight |
10000kg |
|
Corresponding dumping distance(blade plate |
1245mm |
|
Maximum breakout force |
78.6KN |
|
Minimum turning radius |
5710mm |
|
Pilot valve |
Single handle |
|
Maximum torque |
463Nm/1400~1600rpm |
|
Wheel tread |
1850mm |
|
Wheel base |
2530mm |
|
Minimum ground clearance |
320mm |
|
Tyre size |
17.5-25pr |
|
Bucket ascending time |
5.5s |
|
Bucket dumping time |
1.2s |
|
Bucket ascending time |
3.3s |
|
Gears |
Front 4 rear 2 |
|
Service brake |
Air-push oil caliper disc brake |
|
Parking brake |
Air break braking |
|
Forward speed |
36km/h |
|
Astern speed |
27km/h |
|
Bucket recovery angle |
45 |
|
Steering angle |
40 |
|
Dumping angle |
45 |
|
Gradeability |
30 |
